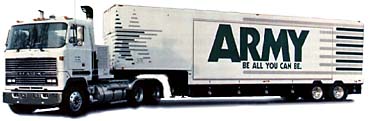

40-O to 60'-0" Over-all-length
12'-6" to 13'-6" Over-all-height
96" 0ver-all-width
Tandem axle air ride suspension
Polished aluminum wheels
Low profile 255-70R-22.5 tires
.050" Prepainted white aluminum exterior skin
Extruded aluminum top rail
Special lower steel rail configuration
20" King pin setting air ride upper coupler
Electric over hydraulic leveling gear in front with
.....spirit levels
Electric over hydraulic leveling gear between tandem
.....with spirit levels, individual control boxes for each
.....pair of legs
.040" One piece aluminum roof skin
Full length painted steel storage boxes with dress off
.....panels, stainless steel handles, hinges and ICC latches
3/8" Plywood walls
3/4" Plywood subflooring
Insulation: 2" walls, 3" ceiling foam and 4"
.....fiberglass in floor
Doors: One (1) 30" x 78" curbside on gooseneck,
.....two (2) front swing doors full height, full width
.....for HAVAC System, one (1) 36" x 78" at rear on
.....center line of trailer
INDEX
Expandable Side Wall Specifications
38" Expansion per side
23'-0 Side wall length
Two (2) hydraulic folding floor assemblies with
.....stainless steel continuous hinge
Automatic 12 VDC floor and expandable side
.....wall limit switches (Prevent one (1) function being
.....preformed prior to another)
Doors: Two (2) 30 x 78 at rear of the expandable
.....side walls with slimline panic bar and door closure
.....assemblies. Doors and handrails stainless steel
.....door trim
90" Ceiling height
Full length aluminum perforated acoustical
.....ceiling panels
12 Volt & 110 VAC hydraulic power pack
.....with an 11 gallon reservoir
Low friction slide rail assembly with roller
.....assemblies
INDEX
Curbside/Roadside Wall Assembly
Custom manufactured graphics and folding
.....bench assemblies
Formica faced cabinets and bench assemblies
Carpet entire expandable area
Three (3) stabilizer jacks
INDEX
Service Area
Gooseneck area with partition at drop section
.....with swing door access
Storage of: Cable reels A) 120/240 VAC 3
.....phase live cable storage reel
B) 115 VAC 30 AMP shore power cable storage
Return air access panels
INDEX
Projection Booth Partition
Rear of the expandable, full height, full width
Insulated with fiberglass insulation
Acoustically treated wall assembly
Three (3) 20 x 31 x 1/4" glass window tempered
.....water pane optical safety glass
INDEX
Electrical
(Storage Compartment Lighting)
Each compartment equipped with a12 volt and
.....120 volt light fixture
Tractor mounted 40 KW diesel generator 120/240
.....3 phase equipped with safety shut down package
.....self charging system
One (1) 120/240 VAC 3 phase live electrical cable
.....reel with 100'-0 storage capacity for generator
One (1) 120 VAC live cable reel with 100'-0
.....storage capacity for 30 AMP shore power
.....applications
Twenty (20) 30 AMP convenience outlets
Three (3) 30 AMP outlets
Ten (10) recessed fluorescent light fixtures in
.....expandable
Two (2) recessed fluorescent light fixtures in
.....service area
Two (2) recessed fluorescent light fixtures in
.....projection room
12 Volt battery charger automatic
4- 6-Volt batteries on slide out tray
Five (5) 12-volt setup lights
Three (3) 120 volt 60 HZ voltage regulators in
.....projection room with quick release brackets
Emergency battery powered lighting
INDEX
HAVAC System
Internally mounted inside front swing doors
Two (2) bard unit 49WA3 with one (1) central
.....transfer duct & diffusers throughout
Digital thermostat controlled with hour meter
