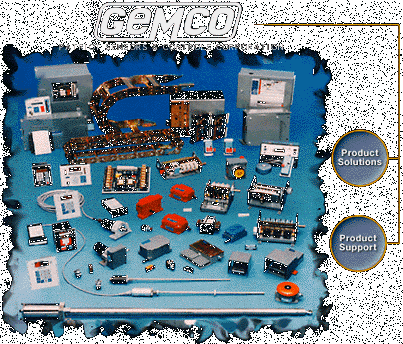

Products by Gemco
404 & 408 Compact Control Units Pushbuttons - push-pull, wobble stick Pilot lights, press-to-test, illuminated Selector switches - spring return, key-operated Convertible contact blocks 2 - 12 positions U. L. Recognized
909 Kam-Way® Linear Motion Limit Switch Up top 96" travel Up to 24 switches Easily adjustable cams Rod and barrel drive Tape drive Cable drive Precision settings Ease of wiring
915 & 917 Cycl-Setv Linear Travel Limit Switch Quick adjustment pointers Up to 20 circuits Up to 65" travel Gear rack and cable driven Fine adjustment Self-contained modules Multiple switch settings for linear travel
925 & 930 Linear Cable Reel Sensors Two styles to choose from (mill duty & industrial duty) Potentiometer, resolver, encoder & tachometer outputs Strokes to 100' Acuracy to .05% of stroke
950 MD L. D. T. Mill Duty Housing Protective housing for magnetostrictive linear .......displacement transducers All stainless steel assembly with two simple .......two-point mounting Air cooling ports & optional water cooling for high .......temperature environments Ideal for retrofitting existing hydraulic cylinders to closed loop ....... or any linear motion application with harsh environment
951 Linear Displacement Transducer Highly accurate magnetostrictive linear sensor Single input voltage requirement Analog and digital outputs Sensing ability to 120" Nonlinearity of <.05% of stroke Repeatabilty of ( .001% of stroke Hysteresis of .001" maximum
1025 Foot and Palm Operated Switches Industrial duty NEMA 4 enclosures SPDT, DPDT and 4-way-5-portr air valves available Guards, shields, and safety gate options available
1946 & 1950 Kam-Dek® and Precision Limit Switches Programmable selector switch Industrial duty Snap action contacts
1980 Micro-Adjust Rotating Cam Limit Switch Settings from 4( to 356( Speeds from 0-500 RPM SPDT and DPDT switches available
1980R Rotating Can Limit Switches with Integral Resolver NEMA 1, 4, 7, and 12 units available Resolvers to interface with Gemco Electronics and others Same speed and accuracy of 1980 units Optional tach generator or encoder outputs
1986 Sensor Assemblies Standard and custom Rotary or linear travel Resolvers, encoders, tach generators, etc.
1988 Quik-Set® II Programmable Limit Switch 10 circuits Absolute transducer Scale factor 2-9999 Full range offset Mechanical relay output PC interface output Triac output Open collector output
1989 I/O PLC Encoder Modules Dual resolver, linear transducer, laser input Digital output in BCD, binary, or gray code .......up to 21 bits maximum Analog, serial communications, remote display optional Portable keypad allows field programming of .......scale factor, offset, etc.
1989 Quik-Set® III Programmable Limit Switch Up to 48 circuits Scan time as low as 17 ms EEPROM memory Multiple program capability Choice of transducers: resolver - single or .......dual optical encoders 4 to 20 mA or 0-10 V analog Single or dual optical encoders Resolution to 1 part in 4, 194, 304 Key-locked program security Programmable decimal point Special software available Dual axis systems Linear transducer input Laser input Programmable scale factor Industrial duty transducers Mill duty enclosures Linear actuators Cable drives Combination mechanical cam/transducer packages
1991 Ultra-High Speed Programmable Limit Switch 7.5 Microsecond scan time 16 limits (high speed), expandable to 48 in groups of 16 Multiple job storage, speed compensation (with opening / .......closing windows) and time-based outputs standard Optional analog outputs, serial communication Built-in 115 VAC power supply
1992 Press-Set® Press Automation Controller LED & alphanumeric display 16 limit switch outputs 3 static die protection inputs 100 jobs set up, speed compensation, time-based outputs Digital outputs, serial communication
1994R Resolver-Based PLC Encoder Modules Single-turn & turns-counting versions Digital in BCD, binary, & gray code as well as analog output Encoder (incremental) output with A, A, B, B, I, I outputs available Up to 14 bit (16384) counts per revolution available All output configurations field programmable
1994L L. D. T. - Based PLC Encoder Module Accepts RS422 start/stop L. D. T. 's Displays position in inches to .001"D, millimeters to .00 mm Generates digital outputs (BCD, binary or gray code) of position .......and analog of position or velocity Accepts 115 VAC or 230 VAC 50-60 Hz
1995A & 1995B Resolver-Based Programmable Limit Switches 6 limits standard expandable to 30 max. Fault check circuitry Brake monitor and motion detect available Multiple job storage, speed compensation and .......time-based outputs optional 115 VAC or 230 VAC 50-60 Hz input power
1995L Analog Input Programmable Limit Switch Accepts 0-10 VDC standard, 0-5, -10 to +10, 4 - 20 mA optionally Displays position in inches to .001", millimeters to .01mm Generates digital outputs (BCD, binary or gray code) of .......position and analog of position or velocity All output configurations field programmable Accepts 115 VAC or 230 VAC 50-60 Hz Business Development Specialist Wanted Automation Partner ...seeking a new "Business Development Specialist" who will embrace and aggressively sell their family of well established and new ruggedized automation products specifically designed for use in the metal forming industry.
